Eccentric

By Spencer Connor

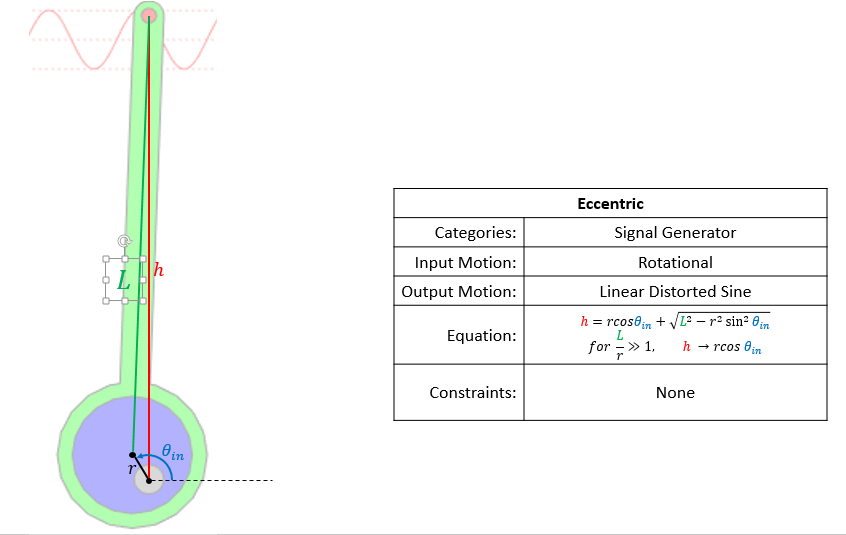

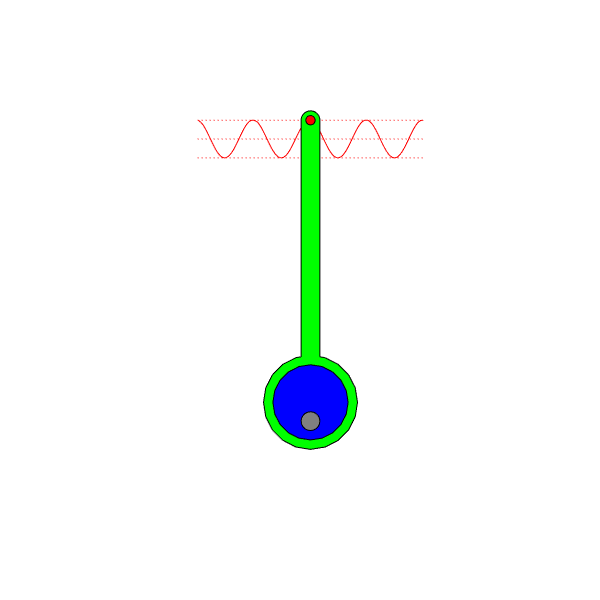

Behind the crank, likely the next most popular signal generating mechanism. In fact, it is kinematically identical to a crank but is just a better physical packaging when the amplitude is low. Just like a crank, as the linkage arm length increases relative to the cam offset, the motion approaches sinusoidal.
