Crank

By Spencer Connor

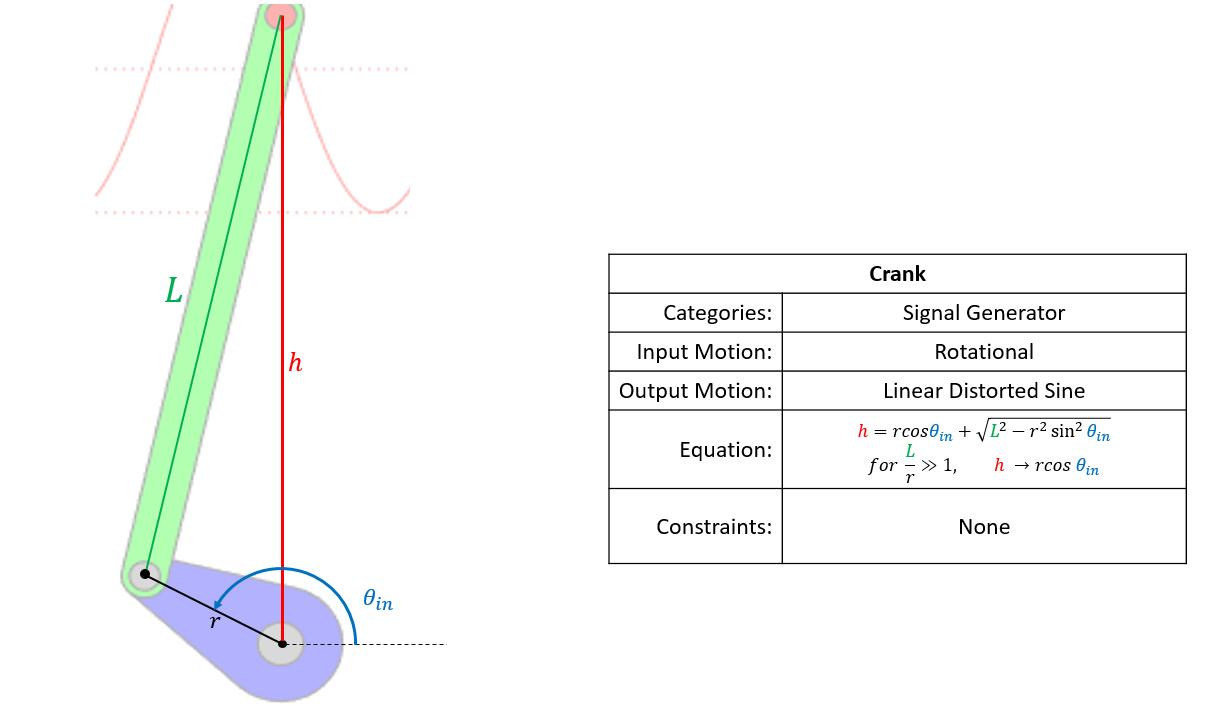

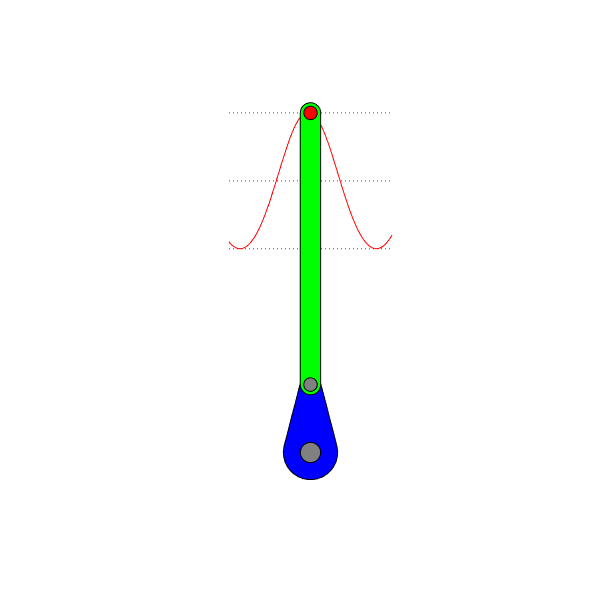

Easy to implement and usually good enough, the crank is likely the most popular signal generating mechanism around. As the linkage arm length increases relative to the crank arm radius, the motion approaches sinusoidal. For low amplitudes an eccentric is kinematically identical and packages better.
