Single Stage Gear

By Spencer Connor

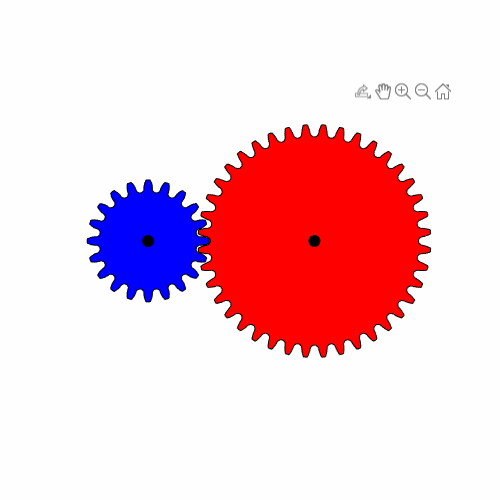

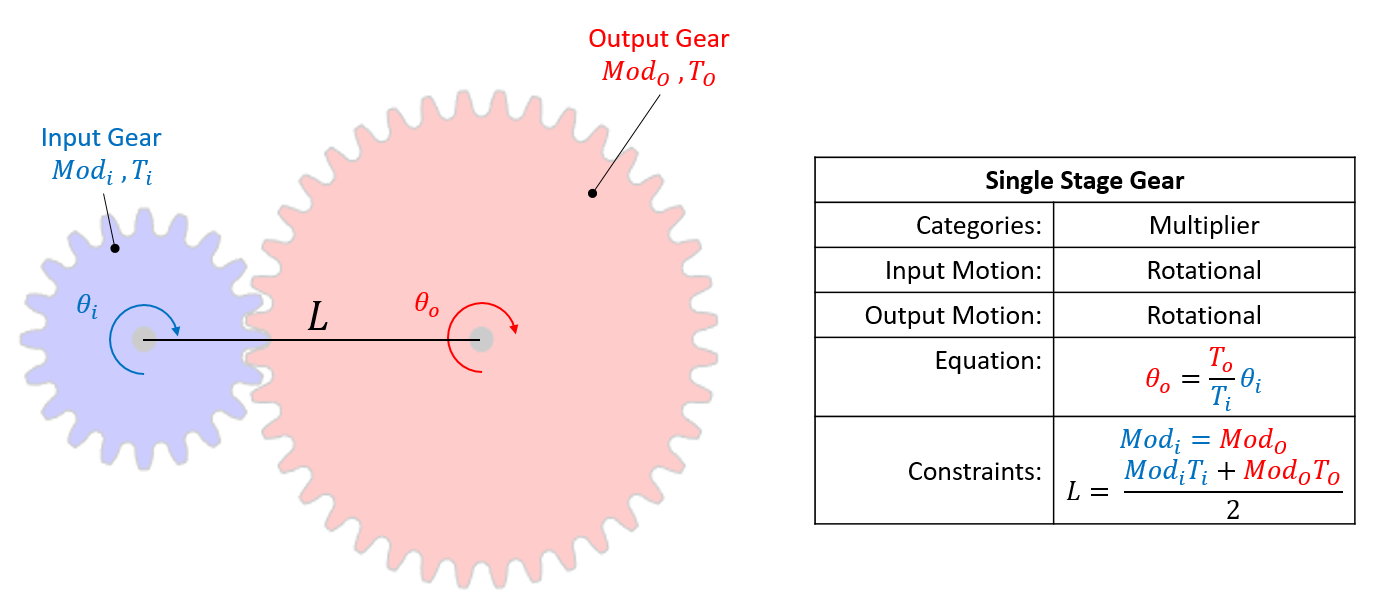

The simplest gear arrangement, the gear ratio is simply the ratio of the gear teeth. The module of the gears must match to ensure tooth meshing, but besides that the teeth can be of any profile: triangular, involute, cycloidal, helical, herringbone, etc. It only gets more complicated from here…
