Offset Cam: Flat Follower

By Spencer Connor

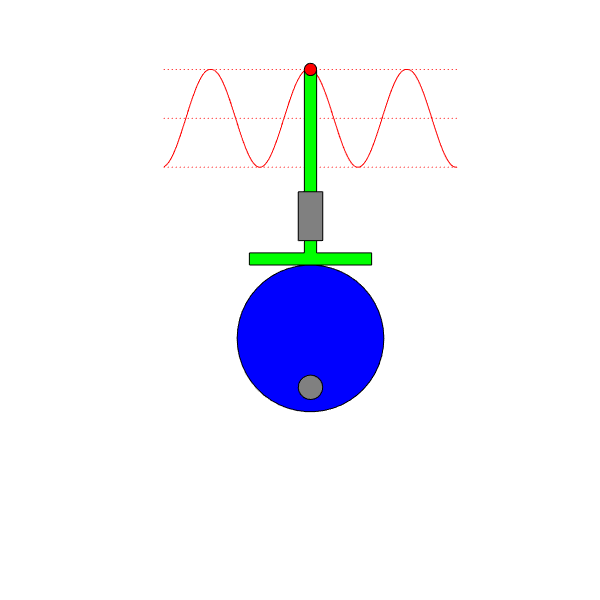

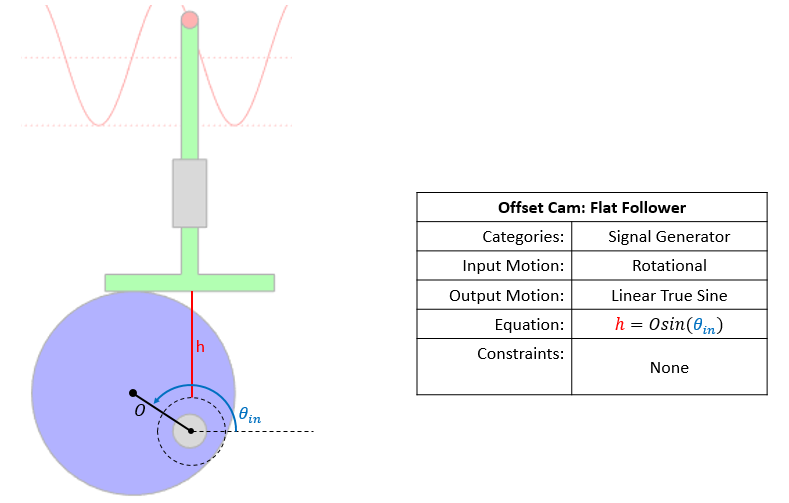

Taking a circular cam and running it eccentrically on a shaft does create a sinusoidal output, so long as the follower is a flat plate perpendicular to the motion of the slider (see also the roller and point variants). The magnitude of the oscillation is simply the offset between the cam center and the rotation center, O.
