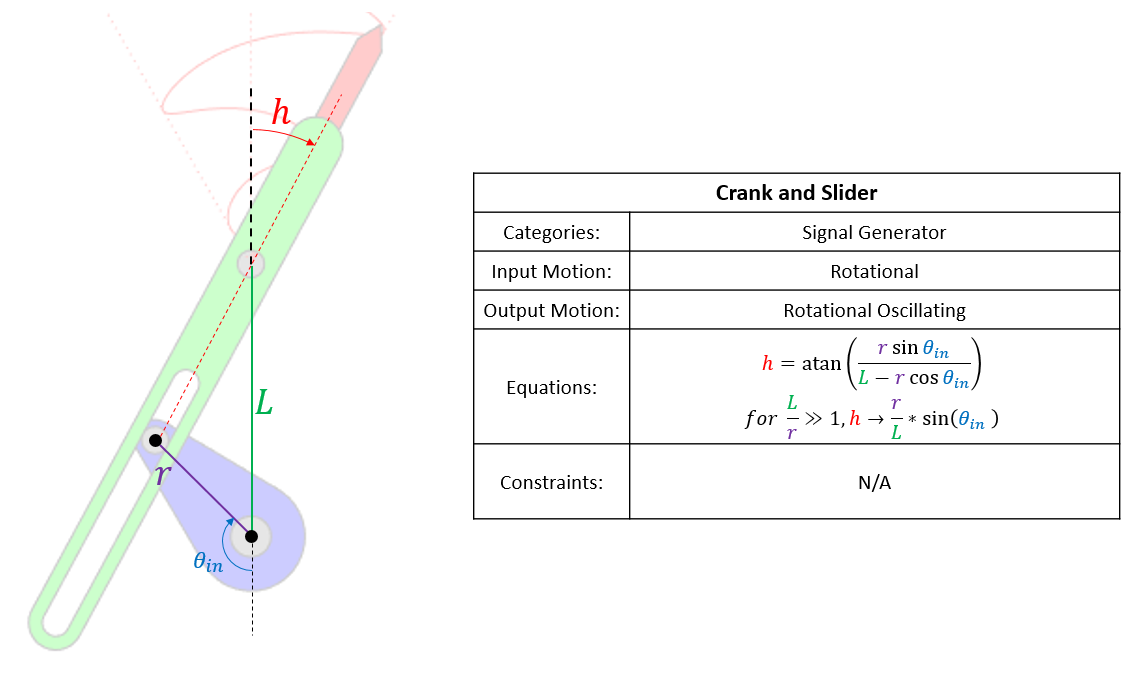

Crank and Slider

By Spencer Connor

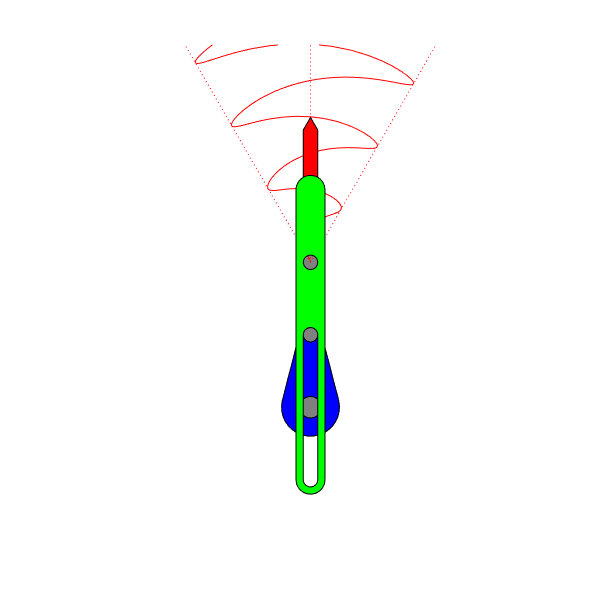

Likely the most common rotational output signal generator, this arrangement does get very asymmetrical at high magnitudes. However, for some devices it may more closely emulate a physical system, such as the Antikythera Device planetarium. At very small magnitudes it approaches an angular sine function.
